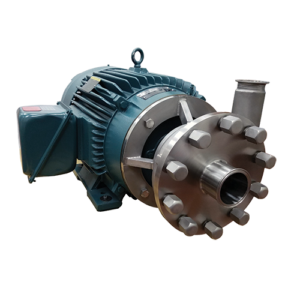

LH SERIES PUMP
ZM Technologies’ LH Series of high pressure centrifugal pumps offer significant space savings and eliminate alignment problems. These pumps are designed for maximum inlet pressure of 600 psi. LH pumps are close-coupled to premium efficiency JM motors to minimize space requirements, eliminate alignment issues and significantly reduce cost.
The LH Series Pump provide:
- Close-coupled, premium efficiency motors with JM frames.
- Custom motor shaft made of AISI 4150 steel.
- Custom bearings with an L10 life of 30,000 hours.

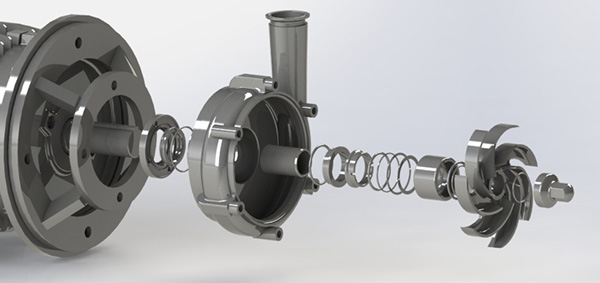

- High pressure seals with silicon carbide faces.
- Lip seal option for applications requiring flush.
- Standard 304SS steel adapter.
- LH pumps offer 100% parts interchangeability with competing brand’s FPH/FPHP pumps.
LH Series Performance Overview
- Models: 3 Available
- Max Inlet Pressure: 600 PSI / 41 BAR
- Max Flow Rate: 760 GPM / 173 Mᵌ/hr
- Max Viscosity: 1,200 cP
- Seal Specifications: 2 Seal Options
| Pump Model Number | Curves | Data Sheet |
|---|---|---|
| LH V532 | LH Series Curves | LH V532 Data Sheet |
| LH V542 | LH Series Curves | LH V542 Data Sheet |
| LH V552 | LH Series Curves | LH V552 Data Sheet |
